Product Model : SS-60W

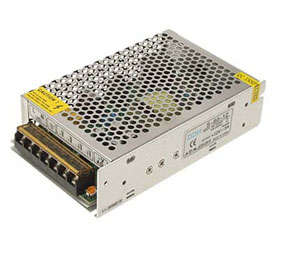

Product Intro : DC 12V 5A 60W power supply
AC input voltage range?90 - 132V AC / 180 - 264V AC, Selected by switch 47Hz - 63Hz
DC output voltage?DC 12V
Rated output current?5A
Product Description
| OUTPUT | DC output voltage? | ? DC 12V |
| Rated output current? | ? 5A | |
| Output current range? | ? 0 ~ 5A | |
| Rated power? | ? 60W | |
| Ripple & Noise? | ? 120mVp-p | |
| Adjustable range for DC voltage? | ? ±10% Rated Output Voltage | |
| Output voltage error? | ? ±1% | |
| Setup, Rise, Hold up time : | ? 200ms,100ms,20ms | |
| INPUT | AC input voltage range? | ? 90 - 132V AC / 180 - 264V AC, Selected by switch 47Hz - 63Hz |
| Input current? | ? 1.3A / 115Vac , 0.65A / 230Vac | |
| AC Inrush Current? | ? Cold start current 18A / 115Vac , 36A / 230Vac | |
| Leakage current? | ? <0.5mA / 240Vac | |
| Efficency (Typ.) | ? 76% | |
| PROTECTION | Over load protection? | ? 105~150% hiccup mode, auto-recovery |
| Over voltage protection? | ? 115~135% | |
| SAFETY & EMC | Safety standards: | ? GB4943 UL60950 EN60950 |
| EMC standards: | ? GB9254 NE55022 | |
| Withstand voltage? | ? 1min I/P-O/P 1.5KV I/P-FG 0.5KV O/P-FG 0.5KV 1min | |
| ENVIRONMENT | Working temp., Humidity? | ? -10ºC ~ +60ºC , 20% ~ 90% RH |
| Storage temp., Humidity? | ? -20ºC ~ +85ºC , 10% ~ 95% RH |
