Product Model : SS-240W

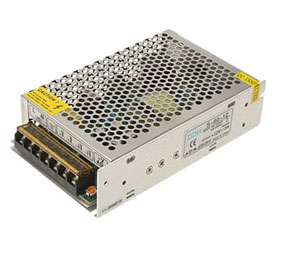

Product Intro : DC 12V 20A 240W power supply

AC input voltage range?90 - 132V AC / 180 - 264V AC, Selected by switch 47Hz - 63Hz
DC output voltage?DC 12V / 15V / 25V
Rated output current?20A / 15A / 10A

Product Description
OUTPUT DC output voltage? ? DC 12V / 15V / 25V
Rated output current? ? 20A / 15A / 10A
Output current range? ? 0 ~ 20A / 0 ~ 15A / 0 ~ 10A
Rated power? ? 240W
Ripple & Noise? ? 120mVp-p / 150mVp-p / 150mVp-p
Adjustable range for DC voltage? ? ±10% Rated Output Voltage
Output voltage error? ? ±1%
Setup, Rise, Hold up time : ? 200ms,100ms,20ms
INPUT AC input voltage range? ? 90 - 132V AC / 180 - 264V AC, Selected by switch 47Hz - 63Hz
Input current? ? 4.5A / 115Vac , 2A / 230Vac
AC Inrush Current? ? Cold start current 35A / 115Vac , 60A / 230Vac
Leakage current? ? <0.5mA / 240Vac
Efficency (Typ.) ? 76% / 77% / 79%
PROTECTION Over load protection? ? 105~150% hiccup mode, auto-recovery
Over voltage protection? ? 115~135%
SAFETY & EMC Safety standards: ? GB4943 UL60950 EN60950
EMC standards: ? GB9254 NE55022
Withstand voltage? ? 1min I/P-O/P 1.5KV I/P-FG 0.5KV O/P-FG 0.5KV 1min
ENVIRONMENT Working temp., Humidity? ? -10ºC ~ +60ºC , 20% ~ 90% RH
Storage temp., Humidity? ? -20ºC ~ +85ºC , 10% ~ 95% RH
