Product Model : SS-24w-A

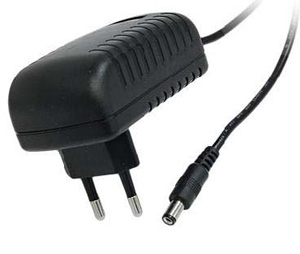

Product Intro : Max 24w AC to DC Switching power supply A
  • 1: AC Rated Voltage Input: 100-240V
  • 2: AC Max Voltage Input: 90-264V
  • 3: AC Input Current: 600mA
  • 4: DC Voltage output Range: 3-24V
  • 5: DC Current output Range: 100-3100mA
Product Description

AC Input Detail:
1)AC Input Voltage Range: 100-240V
2)AC Input Current: 600mA
3)Input Frequency Range: 47-63Hz
4)No Load Power Consumption: <0.5W
5)Inrush Current: 30A
6)Hold Up Time
5ms Min.at100Vac input and output Max .Load.
7)Rise Time: 30 ms Max
8)Line Regulation: ±2%
9)Leakage Current: < 0.25mA


DC Output Detail:
1)DC Voltage Range: 3-24V
2)DC Current Range: 100-1000mA
3)Total Regulation:
4)Ripple & Noise: 100 m Vp-p
5)Working Efficiency: 80%
Short Circuit Protection
Over Voltage Protection
Over Current Protection
Open Circuit Protection


Environmental Requirement:
1)Operating Temperature: 0? -- +40?
2)Storage Temperature: -10? -- +55?
3)Operating Humidity: 5%(0?)~90%(40?) 72h Full Load
4)Storage Humidity: 3%-98%
1)MTBF( Mean Time Between Failures): 50000 Hours
( Based on MIL-STD-217F)
2)Period of Guarantee and Warranty: 1 year


Hi-pot Test:
Primary-Secondary: 3750Vac/ 5mA/ 60s
Primary-Case : 500Vac/ 5mA/ 60s
Burn-In Test:
Full Load with 4 hours at 40?


Regulatory Agency Certification:
EMC Standard: EN55022/ EN55024/ EN55013/ EN55020
2)Safety Standard: EN60065, EN60950


Mechanical Features:
1)AC Plug: American, European Standard
2)DC Jack(Plug): 5.5*2.1mm, 5.5*2.5mm, 3.5*1.35mm,etc
3)DC Cable Length: 1.5m
4)Case Dimension: Unit in “ mm”
5)Weight: 0.16KG
6)Color: Black
